Shooting from a Kayak

So what does a photographer do when he is on vacation? Naturally: plays with cameras, what did you think?

This summer has been very different in many respects – much less sailing for starters as usual (due to Helsinki EC in Athletics first and now the London Olympics starting next week) – and unfortunately more funerals than weddings amongst the close ones…

But: been working with this one project (a demo for  a client, so cannot really tell too much about it yet)…and this has led me to experiment a bit with shooting from a kayak – and more specifically: shooting with GoPros as remotes.

Boats

I’ve been playing with different set-ups, with different boats, but most often I’ve typically used two GoPros with WiFi-packs simultaneously,  mounted either with a suction-cup attachment or permanent (i.e. glued/laminated) attachments on a fiberglass boats. i have attached them at the bow, at the aft, side, deck, paddle…..

The boats I have used are Reval Mini (of Tahe Marine) which is 481/51cm with retractable skeg and SmartTrack rudder (adjustable from the cockpit, which is real nice feature) and the legendary Nordkapp 548/52cm (of Valley) with retractable skeg only.

The Reval Mini is really agile (it has serious rocker so you can maneuver it real easily in the waves) and meant for a lightweight paddler – which means that my 73kg is on the upper limit of that boat. It dives into  the waves easily (i.e. nice, dramatic images), but I don’t feel comfortable at all with it when the wind picks up . Too low primary stability to my taste (and weight ) in strong swell and wind.

But: the rudder makes a world of difference in calm water when you want to point the camera(s) accurately – or if you want nice steady sweep of video footage. The Nordkapp… well, if you know anything about kayaks, I really do not have to say more. If you feel the weather is too much for you… well, it is you, not the boat which is to blame.

Funny detail: I’ve been practicing rolling with both of them (with cams attached), and for some weird reason I find the NordKapp much easier to bring back up. Don’t really know why (maybe the rudder  which I usually do not use as default – i.e. which is then down when your head is down) or the form of the deck – or the fact that the primary stability of the NordKapp is much noticeable so you don’t feel you go over to the other side when you roll. But it’s real strange – you would somehow expect the opposite.

Set-Up

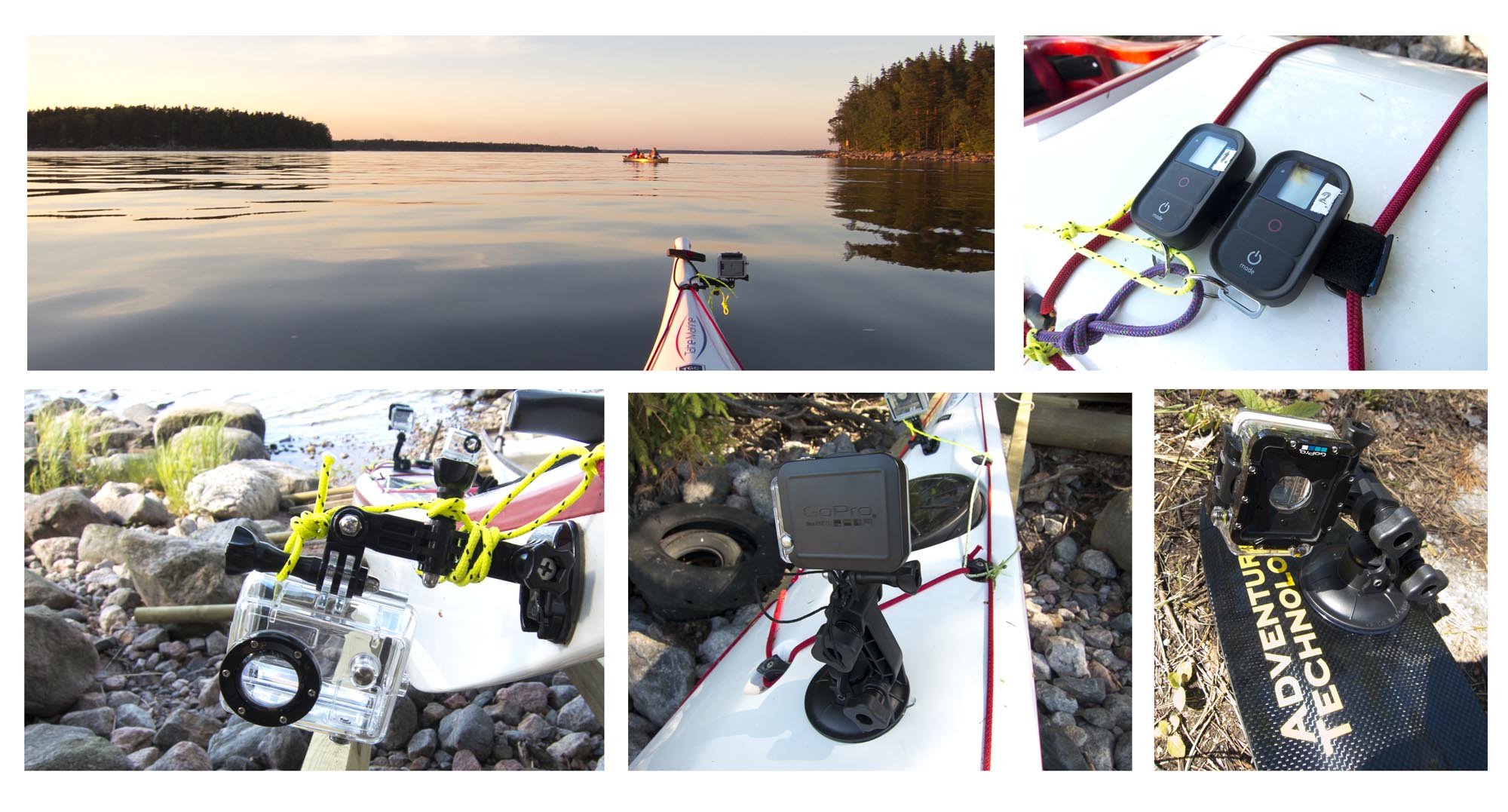

Anyway: couple of images of the set-up. With the Reval I have three glued positions for the cams and because of the form of the bow they come a bit lower to the water as compared to my NordKapp.

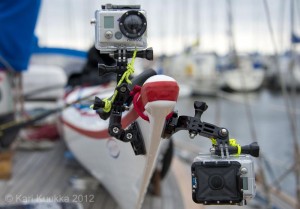

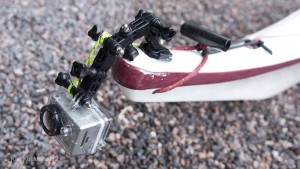

The NordKapp I modified: flattened the topside of the bow and laminated an attachment point. I really like the fact that I can point the cam straight forward, adjust the height and the angle/tilt without worrying if the tip of the bow will be visible. I have used the  LCD-screen attachment to position the cameras, but it is very easy to make mistakes in that.





I do have one housing which is flat port i.e. suitable for underwater images as well – but maybe the biggest asset is the fact that this housing comes with protective cup to safeguard the front of the cam while setting the boat in water etc. – which the standard housing does not have and this freaks me out a bit. It is so easy to scratch the front of the lens – and this FOV/wideangle/DOF the tiniest scratch will be visible.

I have set the remotes separately to two cams – although, if I understand correctly, one remote can control up to 50 cams.

I originally used them on the deck, then attached to my floating device, but now I have pretty much settled having them attached to my  paddle. They are easily operated with your thumb and your hand does not have to leave the grip.

I have rolled with a paddle having  them attached and there has been no interruption in the network and everything have been operating real smoothly. The remotes come with these “keyring attachments” which are real nice for securing them onto the paddle with a small leash – that in addition to the velcro strap used for mounting them.

Basically the remote gives you all the controls you do have with the camera as such: change of modes, intervals, formats, etc. If you program the camera to capture upside down, also your display in the remote is upside down. It has a small red light which confirms that the camera is working correctly. Very sweet indeed.

Also, GoPro is promising that in the nearby future you can control the cams – and even stream live feed – with an iPhone/iPad. Holds lots of promise…. but I really do not see myself taking an iPad into the cockpit of a kayak.

Issues

There are always issues. Power failure – or more like the lack of power when you need it most – is the most notable one. With this set-up  (2 cams, WiFi-packs, remotes) you have six different thing which have to be charged. All USB… so be prepared to have powered hubs with you to keep you going. Or as in my case (living on a sailboat), make sure you have enough 12V/USB chargers. The best method I have found in terms of being economic with the juice is to keep the WiFi-Pack on, but to keep the cams and the remotes off until using them.

Another issue  is condensation inside the housing, which typically forms onto the center of the lens.  I gotta work on that, come up with a solution before the water gets cold again. GoPro sells a pack of silica-gel sachets which fit inside the housing but the price was pretty stiff if I remember correctly (for something like that). Again: the lens with such DOF/FOV shows even the slightest condensation as very disturbing.

What to shoot?

What I mean by this: what does this give you extra what a “decent/real” camera does not give you – i.e. where would you like to use something like this? Well, the most obvious is the I-love-me images… of yourself or the person you are assigned to shoot as kayaking.

You can also shoot in weather/wind/wave conditions where you would not dream of taking out any “real” camera – housing or no housing. You simply cannot let go of the paddle – unless you want some extra practice in rolling….

What I like most though is the possibility of extreme wide-angles very near the surface, touching  the water sometimes…. you just cannot do that with a point and shoot  – and no way you would dig out EOS1X or D4 with a fish-eye in a kayak… or 5D/D800 for that matter.

At least I would not try to do that.

But: here are couple of examples – straight forward photography –  I have left the bow into some images on purpose  to give some perspective.











More Artistic…

I have also gotten into a habit of checking the images with an iPad (real handy in a sailboat – using a laptop is just so much bulkier and also requires more juice from the batteries)… and the other day I started to play around with the Snapseed app.

No, I am not going crazy  about cheap effects/pseudo-hdr/instagram kinda stuff – content is the king, as Jeff Jarvis said –  but I sort of like the feel  in these last three which I shot just the other night right outside Emäsalo.









I mean, this is what summer in Finland really feels like, right? At least, this is how my world looks like.

But: I guess I have to start getting out of this “vacation and fooling around” -mode: next stop is the London Olympics, starting next week.
